Celery

Celery is an asynchronous task queue/job queue based on distributed message passing. It is focused on real-time operation but also supports scheduling. The execution units, called tasks, are executed concurrently on one or more worker nodes using multiprocessing, Eventlet, or gevent. Tasks can execute asynchronously (in the background) or synchronously (wait until ready).

Key Features

Asynchronous Task Queue: Celery allows you to run tasks in the background, freeing up your main application to handle other requests.
Distributed: Celery can distribute tasks across multiple worker nodes, allowing for scalability and fault tolerance.
Supports Multiple Brokers: Celery supports various message brokers like RabbitMQ, Redis, and others to facilitate communication between the main application and worker nodes.
Scheduling: Celery includes a built-in scheduler called Celery Beat, which allows you to schedule tasks to run at specific intervals.
Extensible: Celery is highly extensible and can be customized to fit specific use cases.

Common Use Cases

Background Processing: Offloading time-consuming tasks such as sending emails, processing images, or generating reports to the background.
Periodic Tasks: Running tasks at regular intervals, such as cleaning up databases or sending reminders.
Real-time Processing: Handling real-time data processing tasks, such as processing user uploads or streaming data.

Concept of worker,task,message broker,result backend

Worker: A worker is a process that runs in the background and listens for tasks to execute. Workers can be distributed across multiple machines to handle a large number of tasks concurrently.
Task: A task is a unit of work that is executed by a worker. Tasks are defined in the main application and can be called asynchronously or synchronously.
Message Broker: A message broker is a middleware that facilitates communication between the main application and worker nodes. It queues tasks and delivers them to workers for execution. Common message brokers used with Celery include RabbitMQ and Redis.
Result Backend: The result backend is a storage system where the results of executed tasks are stored. This allows the main application to retrieve the results of tasks after they have been completed. Common result backends include databases, Redis, and others.

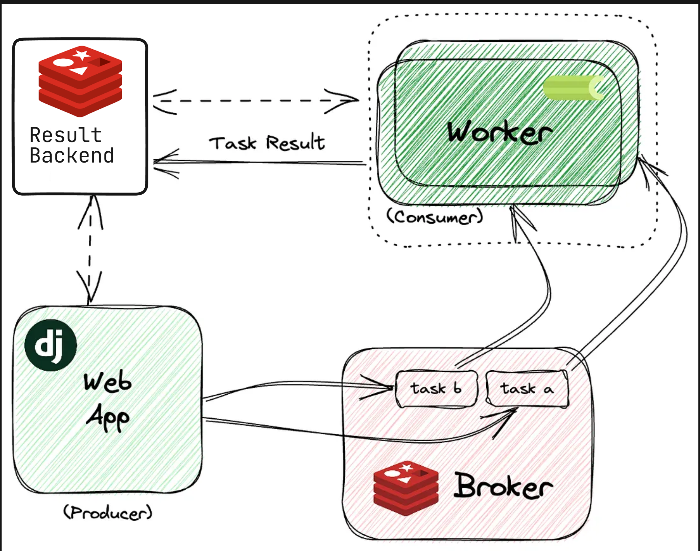

How Celery Works:

For now, the main application (Django) will create tasks and send them to the message broker. The message broker queues these tasks, and worker nodes then pick them up for execution. Once a task is completed, the result is stored in the result backend, from where it can be retrieved by the main application when needed. Celery Architecture

Workers in Celery

Starting Celery Workers

To start a Celery worker, use the following command:

celery -A your_project_name worker -l info

A Celery worker consists of one or more independent worker processes that run concurrently to execute tasks. Each worker process dequeues tasks from the message broker and executes them one at a time.

This means that:

If a worker is running with 4 worker processes, it can execute up to 4 tasks simultaneously.

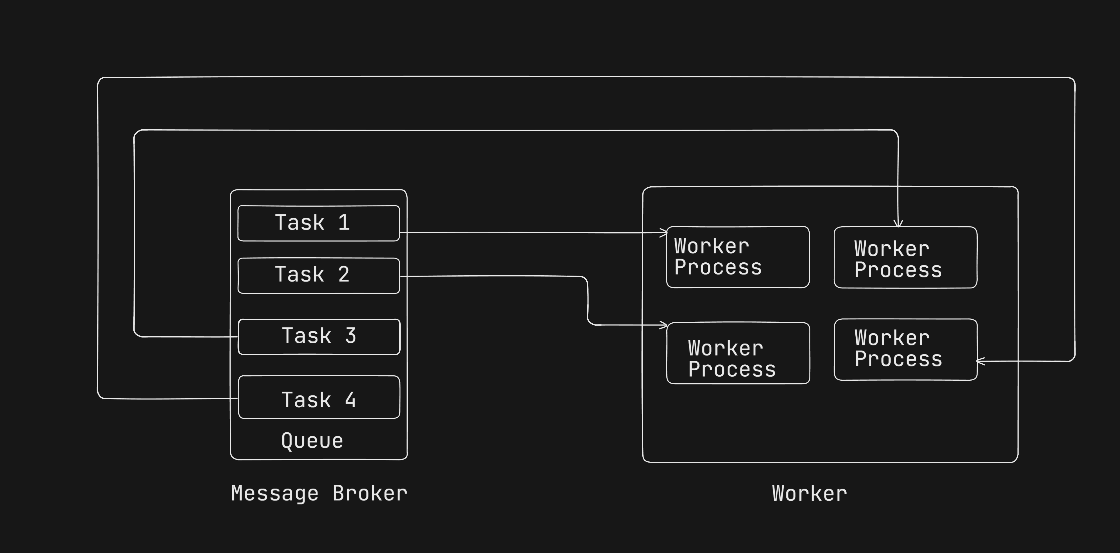

Celery Worker Processes

Setting Worker Concurrency

You can explicitly control the number of worker processes by using the --concurrency option:

celery -A your_project_name worker -l info --concurrency=4

This command starts a Celery worker with 4 concurrent worker processes, allowing it to process up to 4 tasks at the same time.

Note: It is generally recommended to set the concurrency level equal to or slightly lower than the number of available CPU cores to avoid overloading the system.

Note : Task are distributed to worker processes in a round-robin fashion. This means that if you have multiple worker processes, tasks will be assigned to them in a rotating manner to ensure an even distribution of workload.

Pool in Celery

Pool in celery is used to define wheather we want to use threads or processes or asyncio for executing tasks in the worker.

The type of pool in Celery are:

prefork: This is the default pool implementation in Celery. It uses the multiprocessing module to create separate processes for each worker process. Each worker process can handle one task at a time. This pool type is suitable for CPU-bound tasks and provides good isolation between tasks. Implementation:

celery -A your_project_name worker -l info --pool=prefork

Also we can set the number of processes using --concurrency option.

celery -A your_project_name worker -l info --pool=prefork --concurrency=4

Note: By default, Celery sets the concurrency to the number of CPU cores available on the machine.

Threads: This pool implementation uses threads to handle tasks. Each worker process in worker is implemented as a thread. This pool type is suitable for I/O-bound tasks that involve waiting for external resources, such as network requests or database operations. Implementation:

celery -A your_project_name worker -l info --pool=threads

Also we can set the number of threads using --concurrency option.

celery -A your_project_name worker -l info --pool=threads --concurrency=10

Note: Since we are using threads, the number of threads can be set higher than the number of CPU cores.

Solo In solo one worker consist of single worker process which means only one task can be executed at a time. This pool type is mainly used for debugging purposes and is not recommended for production use.This automatically sets concurrency to 1.

Implementation:

celery -A your_project_name worker -l info --pool=solo

Gevent: This pool implementation uses greenlets provided by the gevent library to handle tasks which means each worker process is implemented as a greenlet. This pool type is suitable for I/O-bound tasks and provides lightweight concurrency . Greenlets are lightweight than threads .

Implementation:

celery -A your_project_name worker -l info --pool=gevent

Also we can set the number of greenlets using --concurrency option.

celery -A your_project_name worker -l info --pool=gevent --concurrency=100

Note: Since we are using greenlets, the number of greenlets can be set much higher than the number of CPU cores.

Eventlet:This is similar to gevent pool implementation but it uses eventlet library to handle tasks. Each worker process is implemented as a green thread provided by eventlet. This pool type is suitable for I/O-bound tasks and provides lightweight concurrency.

Implementation:

celery -A your_project_name worker -l info --pool=eventlet

Also we can set the number of green threads using --concurrency option.

celery -A your_project_name worker -l info --pool=eventlet --concurrency=100

Implementation of django celery

To implement Celery in a Django project, follow these steps:

Install Celery and a message broker (e.g., Redis or RabbitMQ) using pip:

pip install celery redis

Note: redis is used as message broker in this tutorial so we are installing redis package.

Create a new file named celery.py in your Django project directory (the same directory as settings.py) and add the following code:

    import os
    from celery import Celery

    # Set the default Django settings module for the 'celery' program.
    os.environ.setdefault('DJANGO_SETTINGS_MODULE', 'your_project_name.settings')
    app = Celery('your_project_name')

    # Using a string here means the worker doesn't have to serialize
    # the configuration object to child processes.
    # - namespace='CELERY' means all celery-related configuration keys
    #   should have a `CELERY_` prefix.
    app.config_from_object('django.conf:settings', namespace='CELERY')

    # Load task modules from all registered Django apps.
    app.autodiscover_tasks()

In your Django project’s __init__.py file, add the following code to ensure that the Celery app is loaded when Django starts:

from .celery import app as celery_app
__all__ = ('celery_app',)

Setting Celery

timezone In your Django settings file (settings.py), add the following Celery configuration:

CELERY_TIMEZONE = 'Asia/Kathmandu'  # Set your desired timezone

Broker URL:

CELERY_BROKER_URL = 'redis://localhost:6379/0'  # Using Redis as the message broker

This configuration sets the broker URL to use Redis running on localhost at port 6379, using database 0.

Task in celery

A task is a unit of work that can be executed asynchronously by a Celery worker. Tasks are defined as Python functions and are decorated with the @shared_task decorator provided by Celery.

Steps:

Create a new file named tasks.py in one of your Django apps (e.g., your_app).
Define a task using the @shared_task decorator:

Example:

from celery import shared_task
@shared_task
def add(x, y):
    return x + y

Functions used to enqueue tasks in Queue

apply_async(): This function is used to call a Celery task asynchronously. It adds the task to the message broker’s queue which will be picked up by a worker for execution.

Parameters:

args: A list of positional arguments to pass to the task
kwargs: A dictionary of keyword arguments to pass to the task
countdown: Number of seconds to wait before executing the task
expires: How many second the task will wait in the queue before it gets expired.

It returns an AsyncResult instance that can be used to track the status and result of the task.

Example:

from your_app.tasks import your_task
result = your_task.apply_async(args=[arg1, arg2],kwargs={'key': 'value'},countdown=10,expires=60)

delay(): This function is a shortcut to call a Celery task asynchronously with only positional arguments. It is equivalent to calling apply_async() with just the args parameter. Example:

from your_app.tasks import your_task
result = your_task.delay(arg1, arg2,keyword_arg='value')

It returns an AsyncResult instance that can be used to track the status and result of the task.We will see about AsyncResult object in Result Backend section.

Realtime Example of Celery with Django

Let’s implement a simple example of using Celery with Django to send an email asynchronously.

First, make sure you have Django, Celery, and a message broker (like Redis) installed.
Configure Celery in your Django project as described in the previous sections.
Add the message broker URL in your settings.py file:
Create a task to send an email in tasks.py of one of your Django apps:

from celery import shared_task
from django.core.mail import send_mail
@shared_task
def send_welcome_email(user_email,message,subject):
    res=send_mail(
        subject,
        message,
        from_email='[email protected]',
        recipient_list=[user_email],
        fail_silently=False,
    )
    return res

In Views.py file of the same app, call the task asynchronously when a user registers:

from rest_framework.views import APIView
from .tasks import send_welcome_email
from rest_framework.response import Response

class RegisterUserView(APIView):
    def post(self, request):
        # Simulate user registration logic here
        user_email = request.data.get('email')
        message = "Welcome to our platform!"
        subject = "Welcome Email"
        # Call the Celery task to send the welcome email asynchronously
        send_welcome_email.delay(user_email,message,subject)
        return Response({"message": "User registered successfully. A welcome email will be sent shortly."})

Then we can start the celery worker using the command:

celery -A your_project_name worker -l info

How it works: For every post request to the RegisterUserView, a new user is registered, and the send_welcome_email task is enqueued into the message broker and response is sent back to the user immediately without waiting for the email to be sent. The Celery worker picks up the task from the message broker and sends the email in the background as shown below: Celery Email Example

Task Result Backend

Upto now we have discussed about sending tasks to the message broker and executing them using workers. But what if we want to get the result of a task after it has been executed? This is where the task result backend comes into play which means a storage system where the results of executed tasks are stored. This allows the main application to retrieve the results of tasks after they have been completed.

To configure a result backend in Celery, you need to add the following configuration to your Django settings.py file:

CELERY_RESULT_BACKEND = 'redis://localhost:6379/1'  # Using Redis as the result backend

This configuration sets the result backend to use Redis running on localhost at port 6379, using database 1 to store task results.

AsyncResult object:

When a task is enqueued using delay() or apply_async(), Celery returns an AsyncResult instance. This object allows you to track the task’s execution state, check whether it has completed, retrieve the result, or handle failures once the task finishes.Also, we can use AsyncResult to get the AsyncResult object of a task using its task id.

Example of getting AsyncResult object using task id:

from celery.result import AsyncResult
result = AsyncResult('task_id_here')

Example of getting AsyncResult object using delay() function:

from your_app.tasks import your_task
result = your_task.delay(arg1, arg2)

The AsyncResult object provides several useful properties:

result: This property returns the result of the task if it has been completed successfully. If the task is still pending or has failed, it will return None.

Example:

result_value = result.result  # Will be None if task is not completed

state: This property returns the current state of the task. Common states include PENDING, STARTED, SUCCESS, FAILURE, etc.

Example:

task_state = result.state  # e.g., 'PENDING', 'SUCCESS', etc.

Result:

PENDING: The task is waiting to be executed.
STARTED: The task has started executing.
SUCCESS: The task has completed successfully.
FAILURE: The task has failed during execution.
RETRY: The task is being retried after a failure.

state and status are same.

id: This property returns the unique identifier of the task. You can use this ID to track the task or retrieve its result later. Example:

task_id = result.id  # Unique identifier of the task

id and task_id are same.

Moreover, the AsyncResult object provides several useful methods:

ready(): This method returns True if the task has completed (either successfully or with failure), and False otherwise. Example:

is_ready = result.ready()  # True if task is completed

successful(): This method returns True if the task has completed successfully, and False otherwise. Example:

is_successful = result.successful()  # True if task completed successfully

failed(): This method returns True if the task has failed, and False otherwise. Example:

is_failed = result.failed()  # True if task has failed

get():Retrieves the result of the task.if the task is still running or hasnt started yet, this method will block until the task is completed and the result is available. Example:

task_result = result.get()  # Blocks until the task is completed and returns the result

Note: if a task consist of return statement then only we can get the result of that task using AsyncResult object.i.e return value of the task function is stored in the result backend and we can retrieve it using AsyncResult object.

Using Concept of Backend Result and AsyncResult Object to Get Task Result in Django View

from rest_framework.views import APIView
from .tasks import add
from celery.result import AsyncResult
from rest_framework.response import Response
class AddNumbersView(APIView):
    def post(self, request):
        # Get numbers from the request data
        num1 = request.data.get('num1')
        num2 = request.data.get('num2')

        # Enqueue the add task asynchronously
        result = add.delay(num1, num2)

        # Return the task ID to the client
        return Response({"task_id": result.id})

class GetTaskResultView(APIView):
    def get(self, request, task_id):
        # Retrieve the AsyncResult object using the task ID
        result = AsyncResult(task_id)
        # Check the state of the task and return appropriate response
        if result.state == 'PENDING':
            return Response({"status": "Task is still pending."})
        elif result.state == 'STARTED':
            return Response({"status": "Task has started."})
        elif result.state == 'SUCCESS':
            return Response({"status": "Task completed successfully.", "result": result.result})
        elif result.state == 'FAILURE':
            return Response({"status": "Task failed.", "error": str(result.result)})
        else:
            return Response({"status": f"Task is in {result.state} state."})

# In urls.py
from django.urls import path
from .views import AddNumbersView, GetTaskResultView
urlpatterns = [
    path('add-numbers/', AddNumbersView.as_view(), name='add-numbers'),
    path('task-result/<str:task_id>/', GetTaskResultView.as_view(), name='task-result'),
]

How it works:

The AddNumbersView accepts a POST request with two numbers (num1 and num2). It enqueues the add task asynchronously using add.delay(num1, num2) and returns the task ID to the client.
Client poll the GetTaskResultView with the task ID to check the status of the task. The view retrieves the AsyncResult object using the task ID and checks its state and returns the appropriate response based on whether the task is still pending, has started, completed successfully, or failed.if completed successfully, it also returns the result of the addition.

Note: Data stored in the Celery result backend is not persistent For example, when Redis is used as the result backend, task results may expire after a certain period based on Redis settings. Therefore, if results need to be stored for longer or accessed later, they should be saved in the database using Django models

We can see the flow of the above implementation in the diagram below: Celery Task Result Flow

Another Approch : Using Django Channes and AsyncResult to Get Task Result in Real-time

In previous section we first enqueue the task and return the task id to the client.Then client poll the server with the task id to get the status and result of the task.But in this approch we will use django channels to send the status and result of the task to the client in real-time without polling.

First client send a request to enqueue the task using django rest framework api.
Server enqueue the task and return the task id to the client.
Client use the task id to subscribe to a WebSocket channel using django channels.
Server use the AsyncResult object to track the status of the task and send updates to the client via the WebSocket channel.

CELERY BEAT: The Periodic Task Scheduler

CELERY BEAT is a built-in scheduler in Celery that allows you to schedule tasks to run at specific intervals or times. It works by periodically sending tasks to the message broker, which are then picked up by Celery workers for execution.

To use CELERY BEAT in your Django project, follow these steps:

Create a task that you want to schedule in tasks.py of one of your Django apps: Example:

from celery import shared_task
@shared_task
def my_periodic_task(a,b):
    print("This task runs periodically!")

2.Configure CELERY BEAT in your Django settings.py file by adding the following configuration:

CELERY_BEAT_SCHEDULE = {
    'run-my-periodic-task-every-minute': {
        'task': 'your_app.tasks.my_periodic_task',
        'schedule': 60.0,  # Run every 60 seconds,
        'args': (10,20),  # Arguments to pass to the task
    },
}

Start the CELERY BEAT scheduler along with the Celery worker using the following command:

start the celery worker:

celery -A your_project_name worker -l info

start the celery beat:

celery -A your_project_name beat -l info

Types of Schedules in CELERY BEAT

Fixed Interval Schedule: This schedule type allows you to run tasks at fixed intervals, such as every 10 seconds, every minute, or every hour. You can specify the interval in seconds using the schedule parameter. Example:

CELERY_BEAT_SCHEDULE = {
    'run-every-10-seconds': {
        'task': 'your_app.tasks.my_periodic_task',
        'schedule': 10.0,  # Run every 10 seconds
    },
}

Crontab Schedule: follow the documentation for more details. Crontab Schedule
Solar Schedule: follow the documentation for more details. Solar Schedule

Use Celery Beat to Send Email If a user has birthday Today

Create a task to send birthday email in tasks.py of one of your Django apps:

from celery import shared_task
from django.core.mail import send_mail
from django.utils import timezone
from django.conf import settings
from django.contrib.auth import get_user_model

User = get_user_model()

@shared_task
def send_birthday_emails():
    today = timezone.now().date()

    users_with_birthday_today = User.objects.filter(
        birthday__month=today.month,
        birthday__day=today.day
    )

    for user in users_with_birthday_today:
        if user.email:
            send_mail(
                subject='Happy Birthday ',
                message=f'Hi {user.first_name},\n\nWishing you a very happy birthday! \n\nHave a great day!',
                from_email=settings.DEFAULT_FROM_EMAIL,
                recipient_list=[user.email],
                fail_silently=False,
            )

    return f"Sent birthday emails to {users_with_birthday_today.count()} users"

Configure CELERY BEAT in your Django settings.py file to schedule the send_birthday_emails task to run daily at a specific time (e.g., 8:00 AM):

from celery.schedules import crontab
CELERY_BEAT_SCHEDULE = {
    'send-birthday-emails-every-day-at-8am': {
        'task': 'your_app.tasks.send_birthday_emails',
        'schedule': crontab(hour=8, minute=0),  # Run daily at 8:00 AM
    },
}

Celery#

Key Features#

Common Use Cases#

Concept of worker,task,message broker,result backend#

How Celery Works:#

Workers in Celery#

Pool in Celery#

Implementation of django celery#

Setting Celery#

Task in celery#

Functions used to enqueue tasks in Queue#

Realtime Example of Celery with Django#

Task Result Backend#

AsyncResult object:#

Using Concept of Backend Result and AsyncResult Object to Get Task Result in Django View#

Another Approch : Using Django Channes and AsyncResult to Get Task Result in Real-time#

CELERY BEAT: The Periodic Task Scheduler#

Types of Schedules in CELERY BEAT#

Use Celery Beat to Send Email If a user has birthday Today#

Celery

Key Features

Common Use Cases

Concept of worker,task,message broker,result backend

How Celery Works:

Workers in Celery

Pool in Celery

Implementation of django celery

Setting Celery

Task in celery

Functions used to enqueue tasks in Queue

Realtime Example of Celery with Django

Task Result Backend

AsyncResult object:

Using Concept of Backend Result and AsyncResult Object to Get Task Result in Django View

Another Approch : Using Django Channes and AsyncResult to Get Task Result in Real-time

CELERY BEAT: The Periodic Task Scheduler

Types of Schedules in CELERY BEAT

Use Celery Beat to Send Email If a user has birthday Today
